| Midget Electricals |

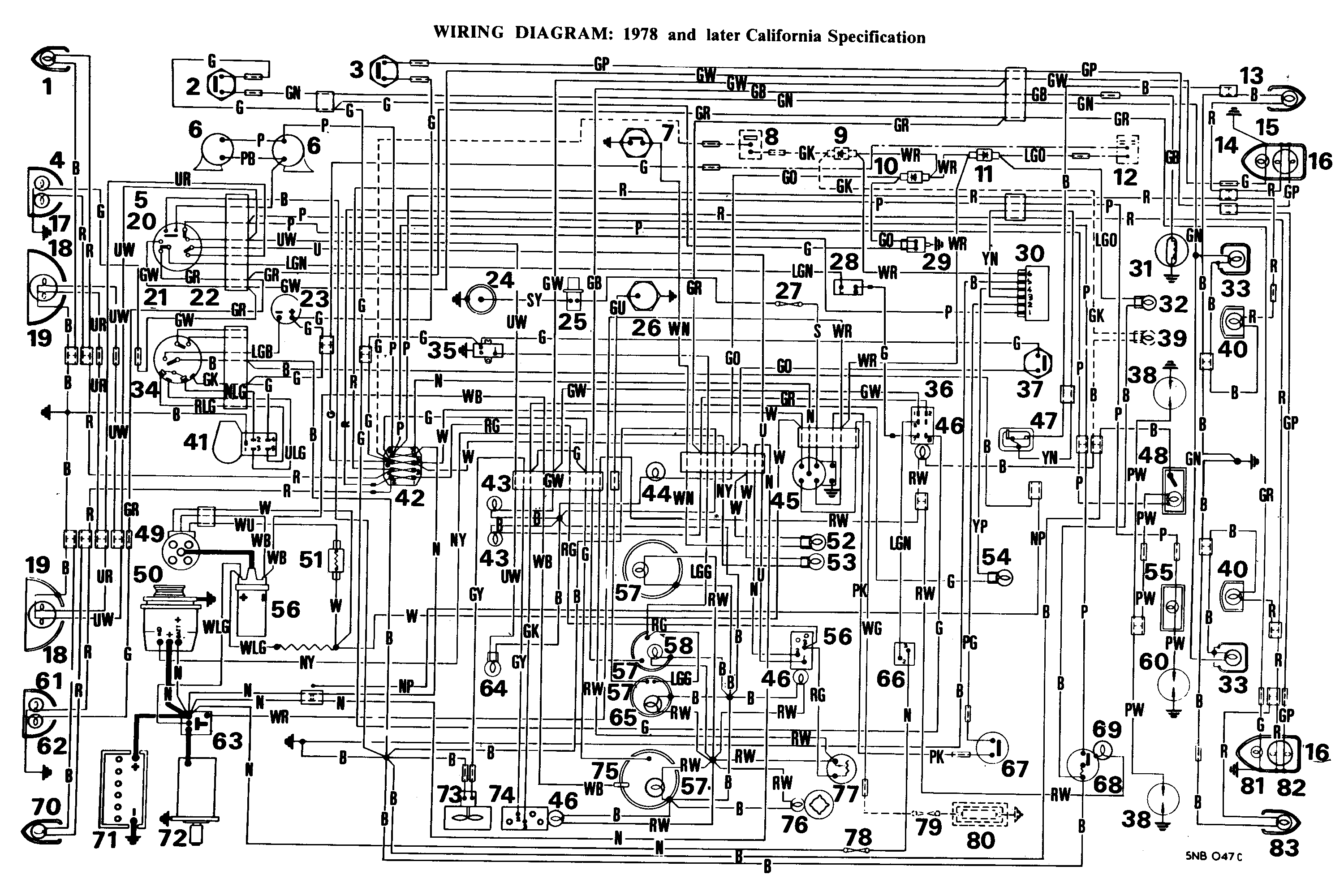

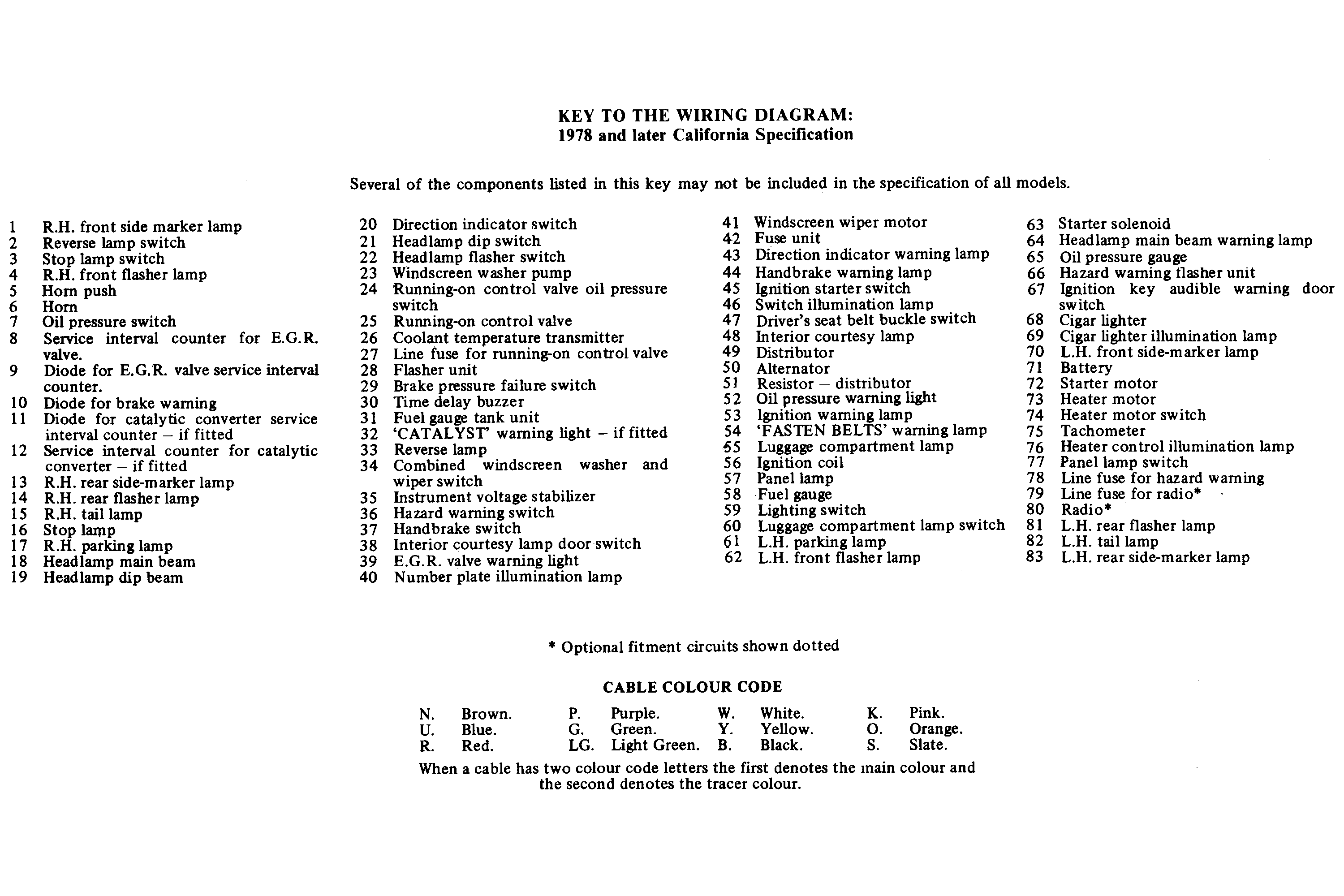

| Here you can find electrical diagrams for MG Midgets of various years and types. These diagrams are BIG (2000 x 3000 pixel gifs, about 200k) and are designed to be printed out. There are two ways to download the diagrams: 1) right-click on the small picture below, then choose "SAVE TARGET AS". This will save the diagram to a folder of your choosing. 2) click on the small image below, then after the BIG image has finished appearing in your browser, check the bottom of the image to make sure it is all there first, then right click on it, choose "SAVE PICTURE AS", and save it to the folder of your choosing. You will also need to download the key for the diagram. Just repeat the process. After you have done one of the above... Open the big diagram that has been saved on your hard drive by double-clicking on it, or opening it with your image-viewing software. Be sure that your printer options is set to 300 dpi. This will print the diagram out at approx 8x10 inches. If the diagram for YOUR 1975-1979 Midget is not shown here, check back at a later date! If you have any questions or have a problem you can email me. NEW! The image in the center will link you to a midgetsprite-list-member improved version of the original, found at left. This new version is in COLOR and replaces numbers with real name labels for electrical items! Be sure to get this one too! Great job TimS! Good luck! |
 |
 |
 |
